Heat Shirnkable Straingth through joints Suitable for 3 core PILC Cables upto 36Kv

GPS- 1236

Descriptions:

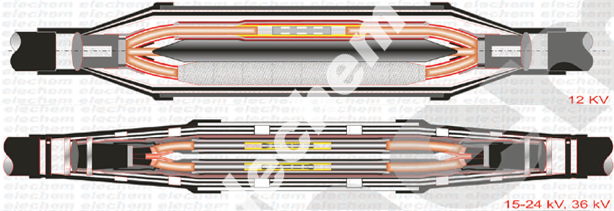

GPS - 1236 - Series kits are heat shrinkable type Straight Through joints, designed to provide a light weight, compact and environmentally sealed system for jointing PILC Cables upto 36KV. To take care of the sealing of PILC Cable & to prevent the leakage of oil in the joint, special heatshrinkable transparent oil barrier tubings are provided. The heat shrinkable components are light in weight & are made of specially formulated crosslinked polymeric material with excellent tracking & erosion resistance characterstics. Our kits has been designed, manufactured and tested according to requirements of the local & international accepted standards.

Salient Features:

Fits a wide dimensional range.
Excellent electrical, thermal & mechanical performance.
Suitable for all conductors shapes Materials & Conductors.
Accommodation of tolerances, different conductor cross sections & cable constructions.
No shelf life limitations upto or below 50 deg C.
Pre-designed components for easy & reliable installation.
Each kit contains easy to follow instructions with well explained visual & graphics for step wise installation methods.
Exceptional Insulation properties.
No Moisture ingress.

Specifications:

Test Sequence	12 Kv System	15-24 Kv System	36 KV System
A.C. Voltage Withstand, 1 Min	35 kV, no Flashover	50 kV no Flashover	75 kV,no flashover
D.C. Voltage Withstand, 30 Min	48 kV, no Flashover	96 kV no Flashover	144 kV no Flashover
Impluse Withstand Voltage	75 kV, no Flashover	125 kV no Flashover	170 kV no Flashover

Order Reference:

Cable sIZE (Sq. mm)	Kit Code
12 kV Systems
16-50	GPS-11
70-95	GPS-12
120-185	GPS-13
240-300	GPS-14
400-500	GPS-15

Cable sIZE (Sq. mm)	Kit Code
15-24 kV Systems
25-50	GPS-21
70-95	GPS-22
120-150	GPS-23
185-240	GPS-24
300-400	GPS-25

Cable sIZE (Sq. mm)	Kit Code
36 kV Systems
35-70	GPS-31
95-150	GPS-32
185-300	GPS-33
400	GPS-34
